Key Features
Weight Capacity 600 lbs.
Range: 32 miles on a full charge.
Max speed: 5 MPH
Wheelchair Weight: 304 lbs.
Warranty: 12 months for Motor & Electronics; 5 Year / Limited Lifetime Frame.
Description

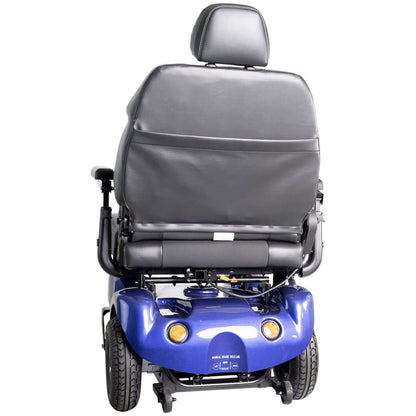

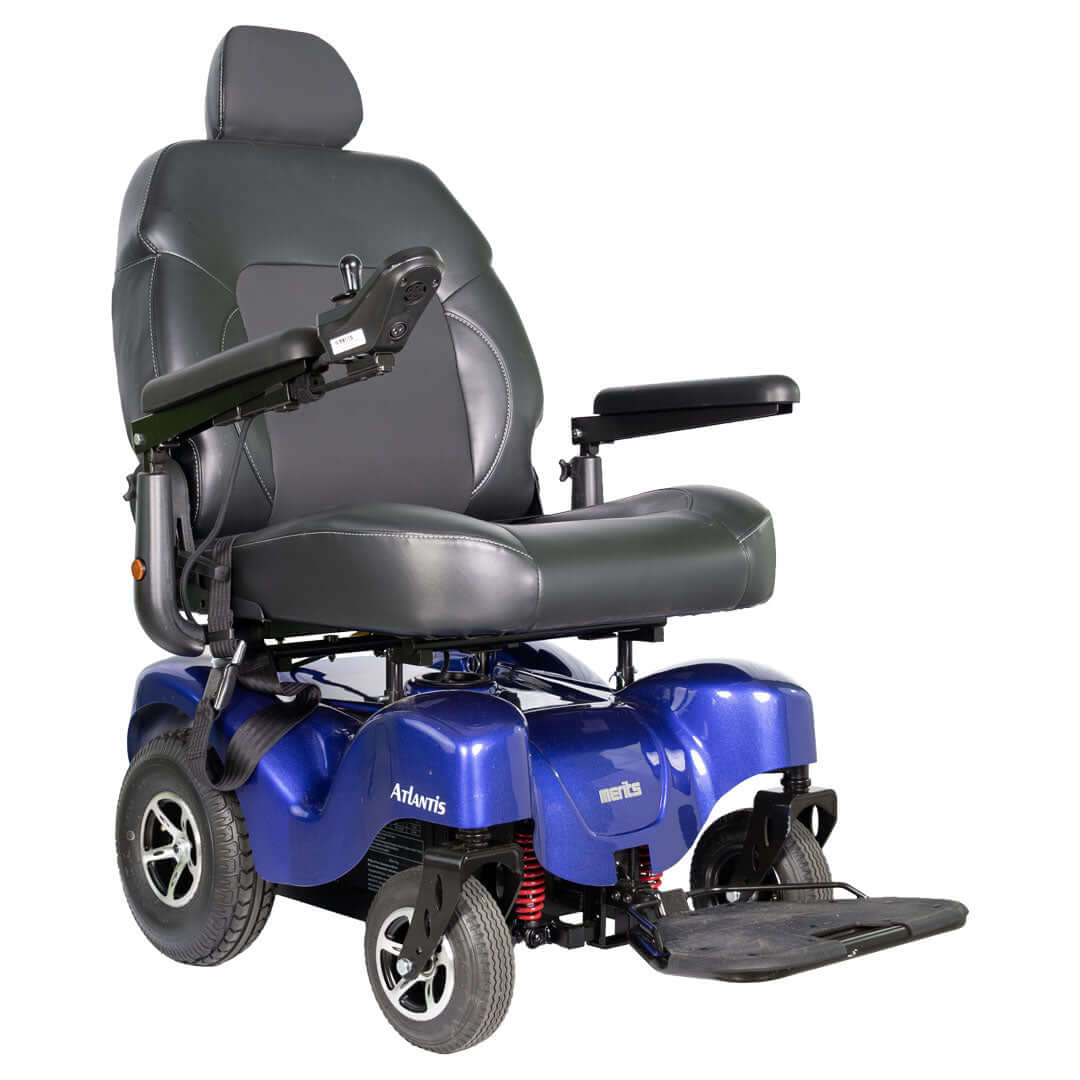

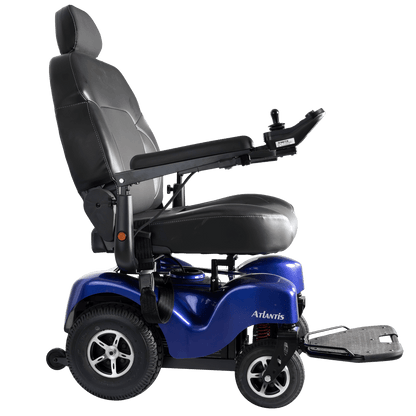

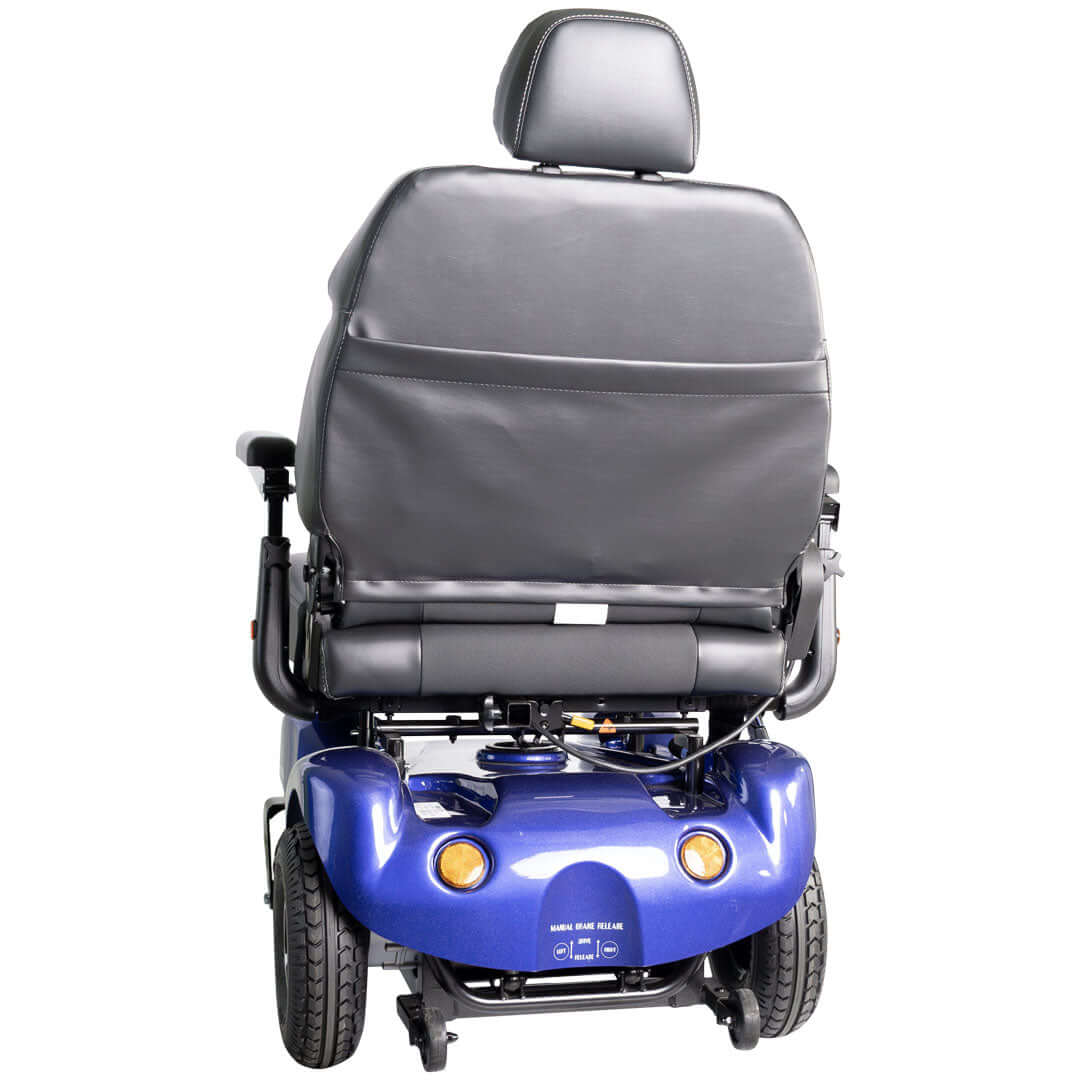

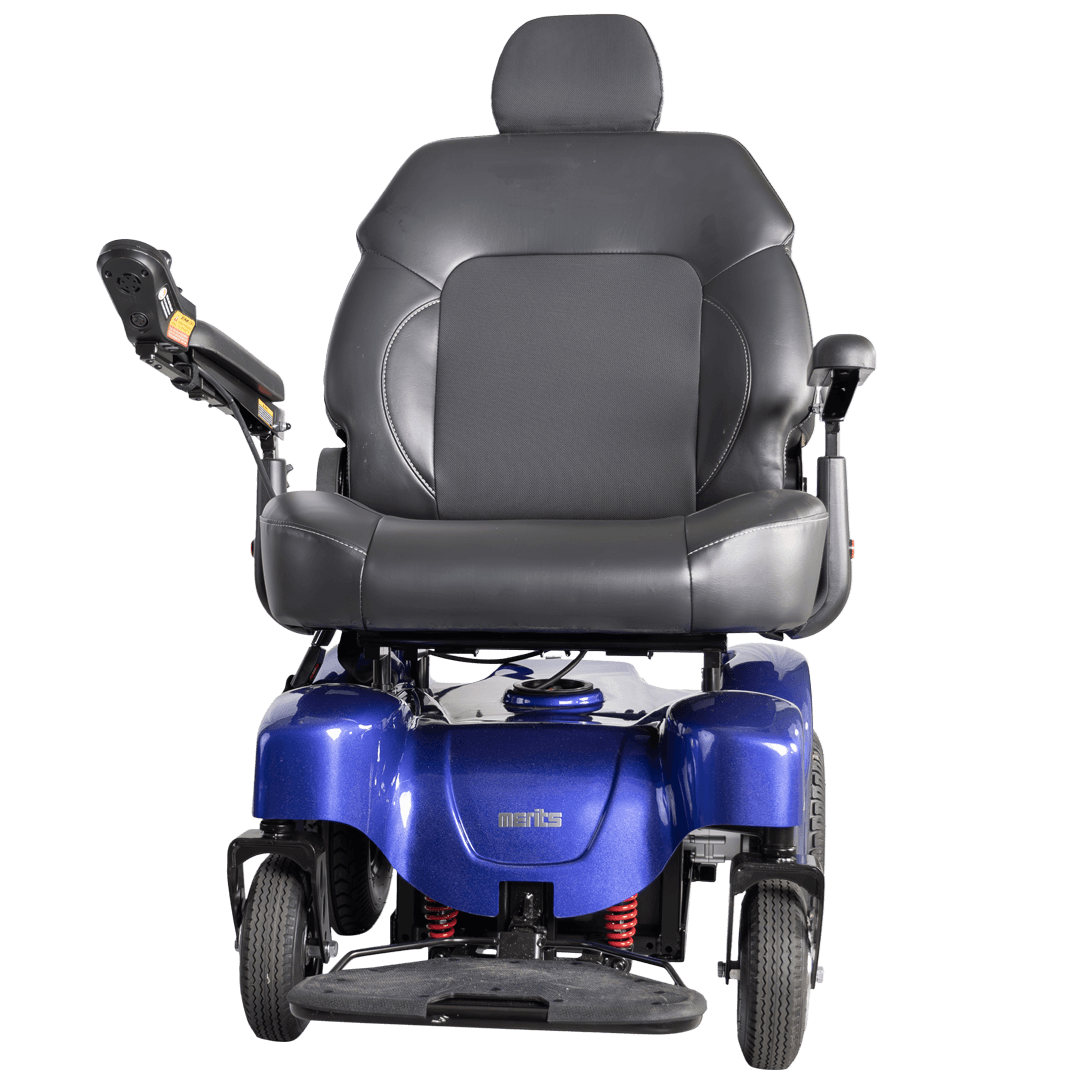

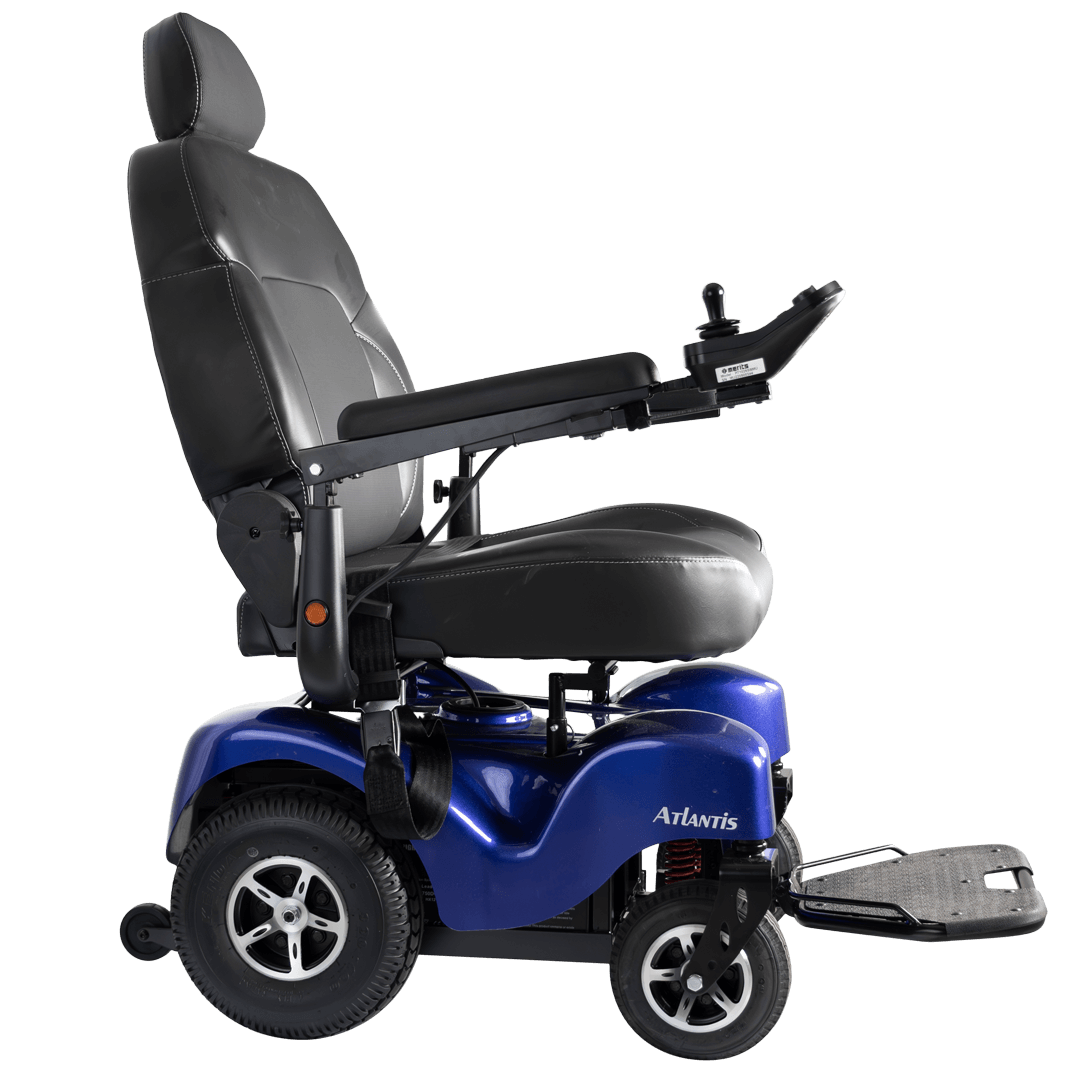

The Atlantis Heavy Duty Power Chair by Merits Health gives you the durability and comfort of a standard power chair with the added benefits of heavy-duty construction and design. With a 31.5-inch turning radius, 12-inch drive wheels, and a high-powered motor, the Atlantis Heavy Duty Power Chair will get you where you need to go with ease.
This wheelchair has a weight capacity of up to 600 pounds.
**Note: Requires two (2) 12v Group 24 75 Ah batteries, sold separately.
Colors in Red or Blue.
Specifications
Warranty: 12 months for Motor & Electronics; 5 Year / Limited Lifetime Frame.
• Weight Capacity 600 lbs.
• Heavy-duty power wheelchair with a unique and prominent design
• Four seat posts provide a more stable and durable structure for the frame
• Available with a captain seat in 24 or 26-inch width
• Extra-wide seat and extra-high back provide great comfort for bariatric users
• Super high power in-line motors help riders negotiate 10° uphill ramps easily
Dimensions: 44" long X 32" wide
Seat dimensions: Width: 24 inches, Depth: 22 inches. Backrest height: 24 inches.
Weight capacity: 600 lbs.
Max speed: 5 MPH
Range: 32 miles on a full charge.
Turning radius: 31.5 inches.
Ground clearance: 3 inches
Batteries (requires 2): 12v Group 24 75 AH (sold separately)
Drive wheels / casters: 12-inch Pneumatic tires / 9-inch front Pneumatic / 3-inch rear anti-tippers
Motor: DC 24v, 300W
Controller: P&G VR2 60A
Charger: 6A off-board
